Monoprice Cat6A 1000ft Black CMP UL Bulk Cable, TAA, Solid, UTP, 23AWG, 550MHz, 10G, Pure Bare Copper, Spool in Box, Entegrade Series Bulk Ethernet Ca
Product Code: 121795
Color: Black
Last checked: Jan 12, 2025

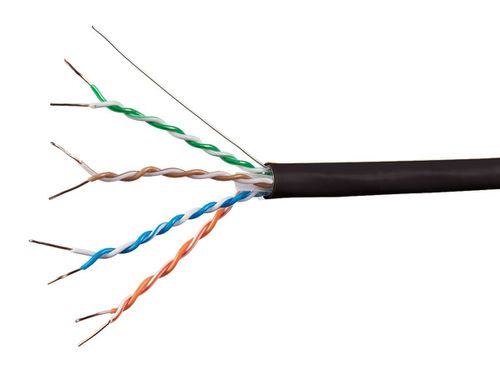

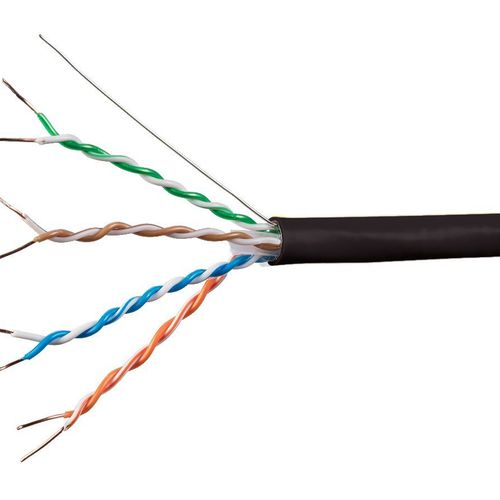

Monoprice™ 23AWG Cat6A 550MHz UTP Solid, Plenum‑Rated (CMP) Bulk Pure Bare Copper Ethernet Cable is premium, high‑speed cabling designed for use in 10GBase‑T (10Gbps) network environments. Constructed using 23AWG solid, pure bare copper conductors with a CMP‑rated PVC jacket, it exceeds EIA/TIA‑568‑D.2 standards and is safe for use in the Plenum spaces of commercial class buildings. This cable is UL‑listed and RoHS compliant.
Features:
- Unshielded Twisted Pair (UTP) Category 6A Ethernet cable
- 23AWG solid, pure bare copper conductors
- CMP (Plenum) fire safety rating
- 550MHz bandwidth
- Designed for use in 10GBase‑T (10Gbps) network environments
- Exceeds ANSI®/TIA‑568‑D.2 standards
- UL® listed and RoHS compliant
- 1000‑foot wooden spool
Monoprice™ Ethernet cables are made of 100% pure bare copper wire, as opposed to copper clad aluminum (CCA) wire, and are therefore fully compliant with UL® Code 444 and National Electrical Code® TIA‑568‑D.2 fire and safety standards, which require pure bare copper wire in communications cables.
| Category | Cat5e | Cat6 | Cat6A | Cat8/8.2 |
| Standard Bandwidth/Frequency | 100MHz (Up to 350MHz) | 250MHz (up to 550MHz) | 350MHz (up to 550MHz) | 2000MHz |
| Maximum Data Rate | 1000Mbps | 1Gbps | 10Gbps | 25Gbps |
| Sheilding Type | UTP or STP (F/UTP) | UTP or STP (F/UTP) | UTP or STP (F/UTP) | Sheilded (S/FTP) Only |
| Maximum Cable Distance | 100m | 100m | 100m (50m @ 10Gbps) | 30m |
